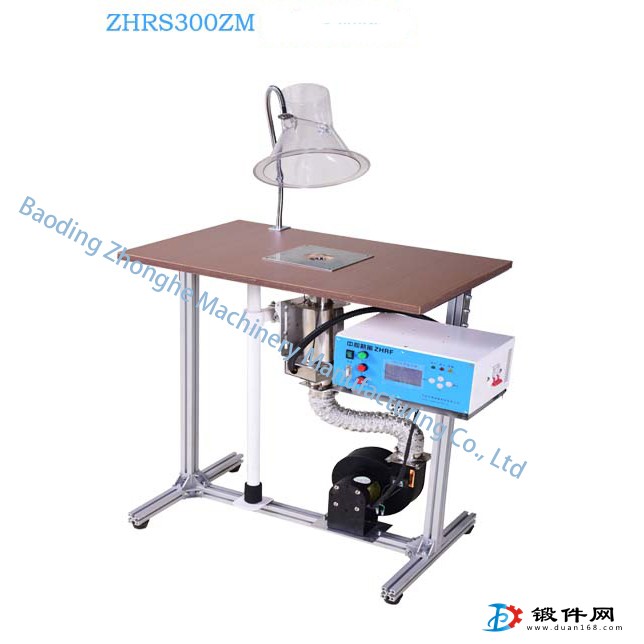

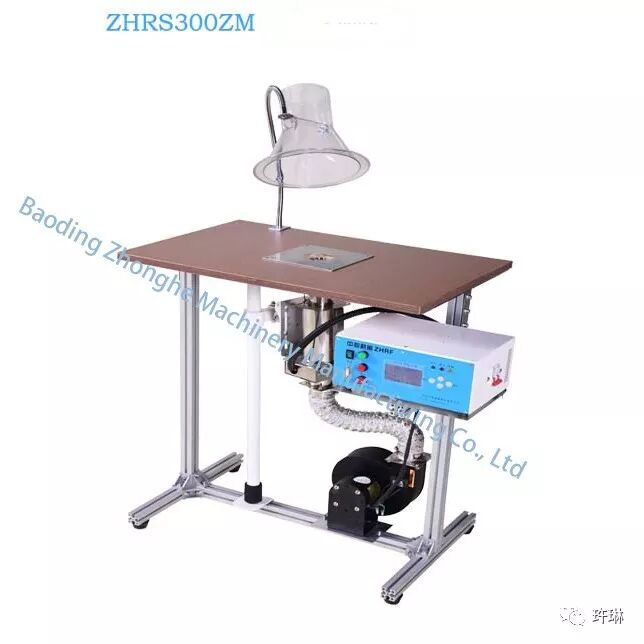

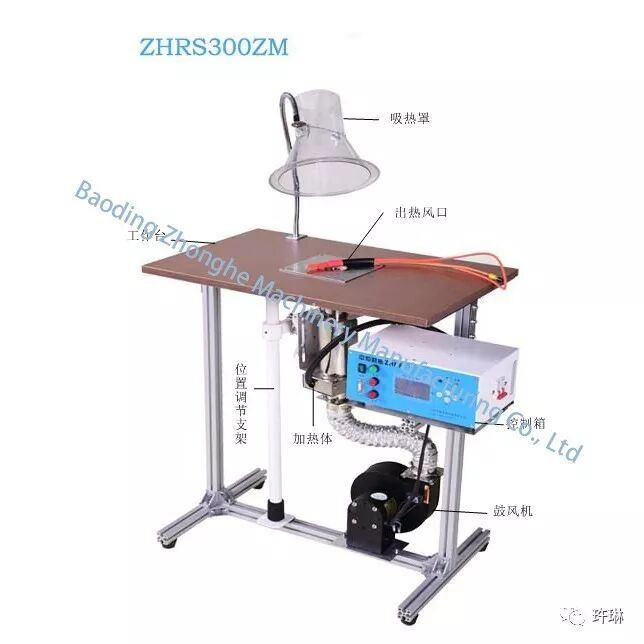

ZHRS300ZM heat shrinkable tube heater is a kind of heat shrinkable tube heater with heating air gun embedded on the desktop. It can work with the worktable, highly suitable and easy to process.The heating air gun is equipped with the heating core of the Wulin brand high temperature air gun. It is of high thermal efficiency, durable and instant heating. It can work continuously for 24 hours without interruption.Its wind speed and heating temperature can be adjusted freely.
Characteristic:
Tuyere distance adjustable
The air outlet of the machine can be heated upwards and downwards for easy use.
Intelligent control system
LCD
Deviced friendly man-machine interface, menu operation of liquid crystal Chinese characters,simple and convenient manipulation,Real-time display of work status.
Open machine presupposition function
The machine can set the speed of the fan, the output temperature, the working time, etc.
Temperature and wind speed regulation
When the machine working, we can adjust the temperature, the speed of the fan without stop.
Intelligent power regulation
According to the air discharge and the air temperature, the heating system intelligently recognizes the output power, and the output is stable.
Temperature control system
The power output is controlled by digital stepless mediation, the temperature is controlled, the output is stable, and the precision of temperature control is 2.
Parameter memory function
The power, temperature, fan speed and other parameters of the hot air fan have memory function
Shutdown delay heat discharge function
In order to prolong the service life of heating core, the machine has the function of stopping time delay and discharging heat. After the machine stops working, the fan will turn off immediately after maximum air volume and blow down for a minute.
With a remote control interface
With remote switch interface and RS-485 communication interface, it is convenient to realize centralized monitoring
Security
Fault detection function of fan:
Real-time detection of fan work by intelligent temperature control system,When the blower is abnormal, the machine will automatically alarm and stop.This machine is equipped with anti dry burning protection function,automatic alarm stop when the heating system is abnormal and high temperature.
Work time presupposition function:
This machine has working time timing function and can be set arbitrarily between 0~5000 minutes.
Safety protection output and safety protection output make the machine work safely.
Heat insulation
Double layer heat preservation.The strong machine casing makes it safe and reliable,can maintain long-term high temperature work.
High heat exchange efficiency
Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.
Classification | Item | Parameter |

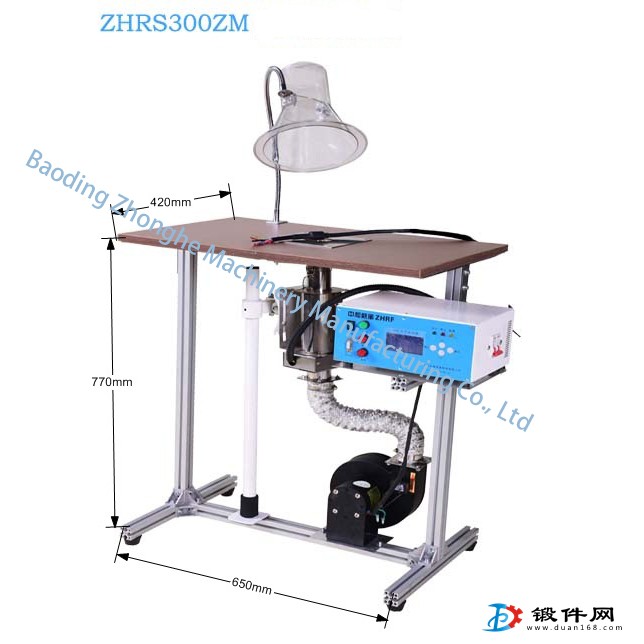

Size | Overall machine size | See picture |
Air outlet | 50mm 25mm | |
Insulation layer | Texture of material | Double layer heat preservation |
Heater
| Name | Electric hot wire |
Heater power | 3KW | |
Power regulation | Intelligent temperature adjustment | |
Maximum use temperature | <395℃ | |
Heating wire life | 100000hours | |
Blower
| Blower | 50W |
Maximum wind volume | 138M3/H，the actual air volume is about80M3/H | |
static pressure | 218pa | |
Power Supply
| Power demand | 220V |
Power | 3050W | |
Weight | Weight | 20KG |
